Audio Output

2-way HF Ceiling Speaker

W: 4” (foam edge) T: ½” (Mylar)  | Power taps @ 100V 20/10/5W  | Cov.e Angle: 1KHz/4KHz (-6dB) 130°/120°

Construction materials: ABS/Iron  | Ø x D: 187 x 80 mm | Weight 1.2Kg | Mounting Hole: Ø 160mm

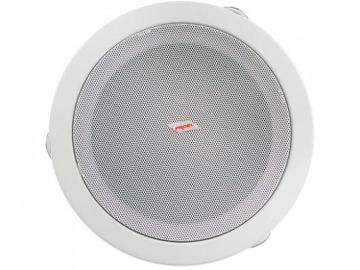

6W Ceiling Speaker

5’’ full range | RMS power: 10/5/2.5W @ 100V | Constant voltage binding: 100V | Construction materials: ABS / Steel | W x H x D: 191.5 -H 78 mm | Weight: 1 kg | Mounting Hole: Ø 165mm

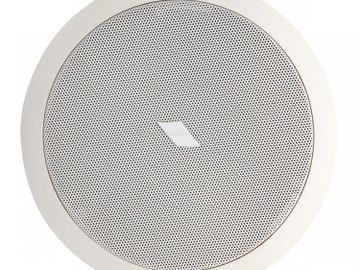

20W Ceiling Speaker

W: 6.5’’ T: 1’’ | RMS power: 20/10/5/2.5W @ 100V | Constant voltage binding: 100V | Materials: ABS / Steel | W x H x D: Ø 204 -H 85 mm | Weight: 1.2 kg | Mounting Hole: Ø 179mm

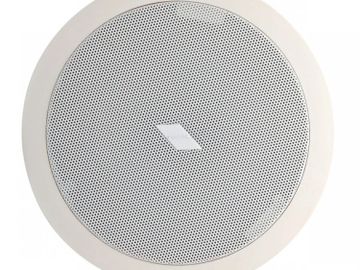

6W Ceiling Speaker

5’’ full range | RMS power: 6/3W @ 100V | Constant voltage binding: 100V | Cov. Angle 1KHz/4KHz (-6dB): 150º / 95º | Materials: Iron | W x H x D: – Ø 204 -H 85 mm | Weight: 0.7 kg | Mounting Hole: Ø 175mm

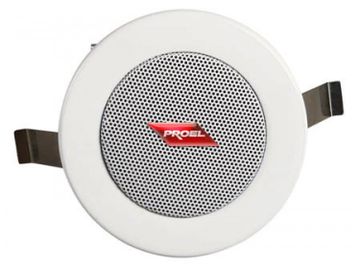

6W Mini Ceiling Speaker

2.5” full range | RMS power: 6/3/1.5W | Constant voltage binding: 100/70V | Cov.Angle 1KHz/4KHz (-6dB): 130º / 90º | Materials: ABS / Steel | W x H x D: Ø 100 -H 75 mm | Weight: 0.35 kg | Mounting Hole: Ø 90 mm

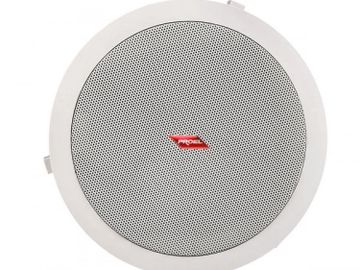

2-way Hi-F60W Ceiling Speaker

W: 6.5’’ T: 0.75’’ | RMS power: 60/30/15W @ 100V | Constant voltage binding: 100V | Cov.Angle 1KHz/4KHz (-6dB): 160º / 90º | Materials: Iron ABS / Steel | W x H x D: – Ø 252 -H 210 mm | Weight: 3.4 kg | Mounting Hole: Ø 223mm

Pendant Speaker

Speaker/s: W: 6.5’’ T: 1’’ | RMS power: 20/10/5/2.5W @ 100V | Constant voltage binding: 100V | Frequency response: 70Hz -20KHz (-10dB) | SPL (1W/m): 87 dB - 100 dB | W x H x D: Ø 184 - H 162.5 mm | Weight: 1.7 Kg | Cable length 4.5m

Two-way 30W Monitor

W: 3.5’’ T: 1’’ | RMS power: 15/7.5/4/2/1W | Constant voltage binding: 100/70V | Cov.Angle 1KHz/4KHz (-6dB): 150º/100º | Controls: POWER LEVEL SWITCH | Materials: ABS/Steel | W x H x D: 130 x 198 x 130mm

Weight: 1.8 kg | Fixing system: U type steel bracket

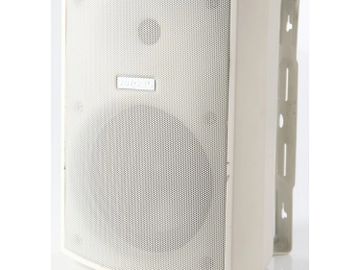

Two-way Wallmount Loudspeaker

W: 6.5’’ T: 1’’ | RMS power: 40/20/10/5/2W @ 100V | Constant voltage binding: 100/70V | Cov.Angle 1KHz/4KHz (-6dB): 140º / 90º | Controls: POWER LEVEL SWITCH | Materials: ABS/Steel |  Weight 4.2 kg | Fixing system: U type steel bracket

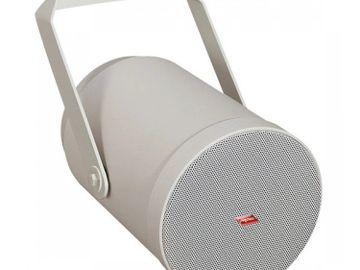

Sound Projector: Full range | RMS power: 10/5/2.5W @ 100V | Constant voltage binding: 100V | Cov.Angle 1KHz/4KHz (-6dB): 130º / 85º | Materials: ABS | W x H x D: Ø138 x 190 mm | Weight:1.9 Kg | Fixing system: U type steel bracket

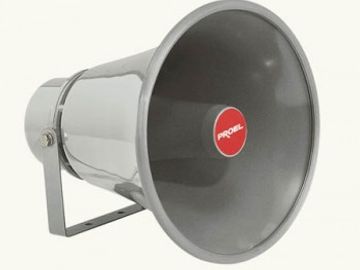

Horn Speaker: RMS power: 30/15/10/5/3/1W @ 100V | Constant voltage binding: 100V | Cov. Angle 1KHz/4KHz (-6dB): 90º / 60º | Materials: Aluminium | (W x H x D: Ø259 x 261 mm | Weight:1.8 Kg | Fixing system: U type steel bracket

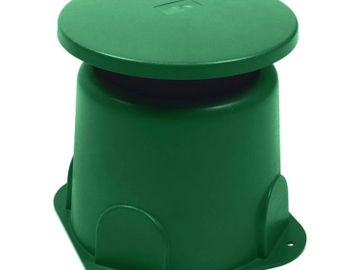

Mushroom speaker

Coaxial 2 ways | RMS power: 100V: 10/5W | 70V: 5/2.5 W | Constant voltage binding: 100V | Cov.Angle 1KHz/4KHz (-6dB): 360° / 360°| Materials: ABS resin | W x H x D: 212 x 235 x 213mm | Weight: 1.72 kg | Fixing system: On the ground | Protection rating: IP 55

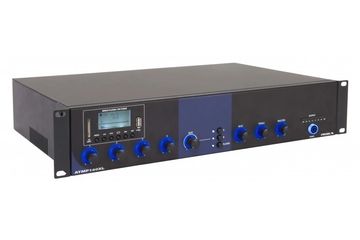

Media Player Mixer Amplifier: 160W, 70/100V, 4Ω complete with multimedia module with Tuner FM, MP3 player on SD MCC/USB support and Bluetooth connection, two rack units.

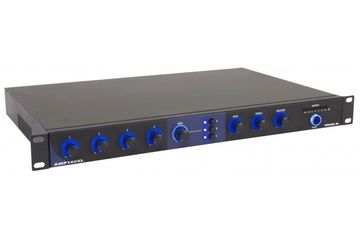

Mixer Amplifier: 60W, 70/100V, 4Ω with speakers overload and short-circuit protection circuit.   Illuminated knobs.  4 MIC / MIC Phantom 48V / LINE inputs balanced on Euroblock terminal. 1U 19" rack.

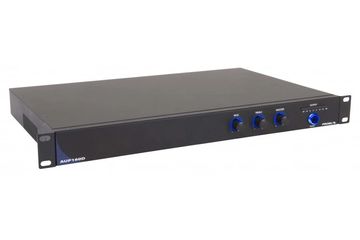

Power Amplifier: Responds to precise operating criteria and was designed  and tested to guarantee total reliability of use, also with continuous operation | 160W, 100/70V/4Ω, Variable gain 600Ω, Master volume - Treble tone - Bass tone, 1U  19" rack.

Power Amplifier:  4 channels, master control for each channel and independent, Treble-Bass Control, PA - HF filter rear insertion, Low and high tone control,  2 rack units 19”.

Antilarsen / Frequency Shifter Specifically designed for elimination of possible audio feedback that can be generated in an audio system in  environments such as churches and conference rooms.

Balanced line input on XLR connector | Unbalanced line input on RCA connector | Balanced line output on XLR connector | Unbalanced line Output RCA connector | LED indication of operating mode | Switch power supply 230/117V~ 50/60Hz

Professional CD/MP3 Player with USB. Player-Tuner Controls.Power Supply: 230V 50Hz. Connectors: CD/MP3 OUT: 1x RCA L/R - TUNER OUT: 1x RCA L/R].
1 rack unit.

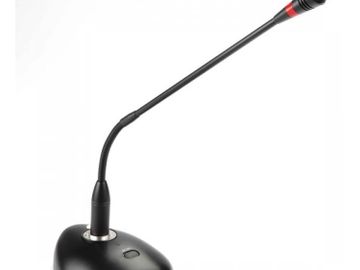

Microphone base

Sensitivity: -40dB ± 2dB / 100ohm ±30% | Frequency response: 40Hz -20KHz (-3dB) | Power Supply: Phantom 48Vdc Batteries 3V (2x AA type batteries) | Gooseneck length: 445 mm | Controls: ON/OFF SWITCH | Input/Output Connectors: INPUT: 1x XLR | OUTPUT: 1x XLR | W x H x D: 115 x 140 x 30mm | Weight: 0.7 kg | Transducer type: Electrete

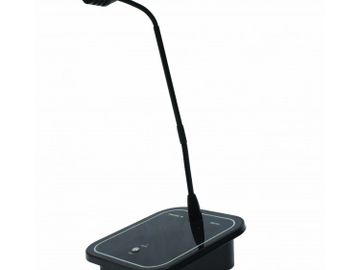

General announcement call station with dynamic microphone, Push to talk button and priority output contact (Normally Open).

Sensitivity: -55dB ± 3dB | Frequency Responce: 70Hz ÷ 17KHz (-3dB) | Gooseneck length: 390 mm | Input/Output Connectors: 2 x RJ45 | W x H x D: 165 x 178 x 442 mm | Weight: 0.8 Kg

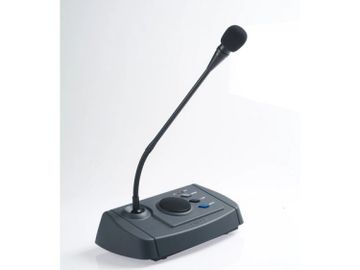

Glass Counter: Easy communication between a counter operator and the public throughout  the glass counter. This system operated in the attenuation mode such as to allow a natural conversation without unpleasant breaks.

False Full-duplex or half duplex | Level and gain control for both side: operator station and public side | Control at +3 dB for instantaneous public power side variation | Internal antilarsen system.

8-ZONE Music & Announcement Control System:  Single or separate system for main program and announcements. 18 mic bases, CAT5 interface, Tape-CD-Tuner-AUX1-AUX2, 3x VOX (VOX - MESSAGE - TELEPHONE),  2 rack units 19''.

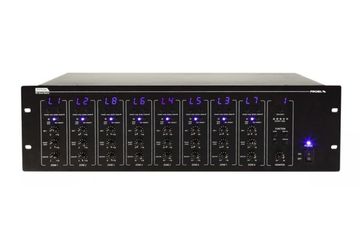

8-ZONE Voice/Music Matrix: 8 music inputs and 8 audio zone outputs, 2 inputs to connect 2 BM8X8 paging consoles, corresponding remote control (R88, R88L or LOC02), one mic input with switchable priority,  EMC input, 3 rack units 19''.

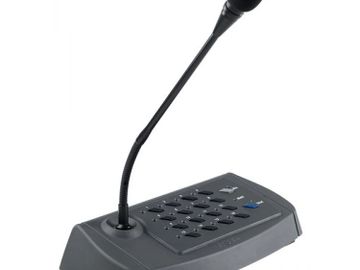

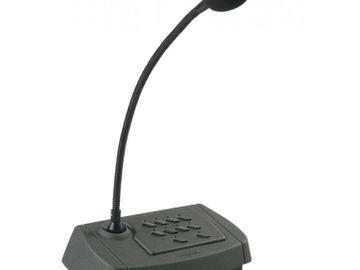

Electret condenser microphone on a fl exible gooseneck. Robust plastic base with scratch-proof fi nish and rubber feet. Local tone and volume control.

Optional 3-tone announcement tone card with volume control. Excellent audio quality, even with long cable runs. “Busy” Led indicator for zones currently addressed by another base.

Electret condenser microphone on a flexible gooseneck. Robust plastic base with scratch-proof fi nish and rubber feet. Local tone and volume control. Optional 3-tone announcement tone card with volume control. Excellent audio quality, even with long cable runs. “Busy” Led indicator for zones currently addressed by another base.

Digital microphone console for announcement:  BM8X8 features a high-sensitivity electret condenser microphone with a  wide frequency response, 8 zone selection buttons.

ALL button and a TALK button. BM8X8 also features switchable 2-note/4-note chime and  is provided with local 230÷115V~/24V DC power supply.

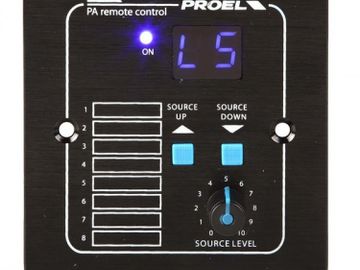

Remote Control:  wall-mounted remote control to combine with MATRIX88 in the audio zone to which it is assigned. Remote selection of 8 music programs, OFF position and Local Channel.  UTP CAT5 cable.

(Lx H x D): 86 x 86 x 33 mm.

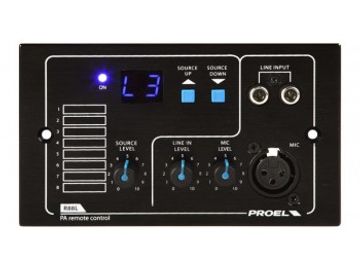

Remote Control with local input:  wall-mounted remote control to combined with MATRIX88 unit in the  audio zone to which it is assigned. R88 controls the volume and the  remote selection of 8 music programs, OFF position and Local Channel.  UTP CAT5 cable.

(Lx H x D): 86 x 146 x 33 mm.
